#include <non_value_widget.hpp>

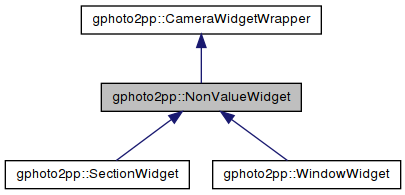

Inheritance diagram for gphoto2pp::NonValueWidget:

Collaboration diagram for gphoto2pp::NonValueWidget:

Public Member Functions
int	countChildren () const
	Gets the number of children to this current widget.
template<typename T >
T	getChildByName (std::string const &name) const
	Gets the child widget that matches the name.
template<typename T >
T	getChildByLabel (std::string const &label) const
	Gets the child widget that matches the label.
template<typename T >
T	getChild (int index) const
	Gets the child widget at the specified index.
template<typename T >
T	getChildById (int id) const
	Gets the child widget that matches the unique id.
Public Member Functions inherited from gphoto2pp::CameraWidgetWrapper
virtual	~CameraWidgetWrapper ()
	CameraWidgetWrapper (CameraWidgetWrapper &&other)
CameraWidgetWrapper &	operator= (CameraWidgetWrapper &&other)
	CameraWidgetWrapper (CameraWidgetWrapper const &other)
CameraWidgetWrapper &	operator= (CameraWidgetWrapper const &other)
gphoto2::_CameraWidget *	getPtr () const
	Gets the raw resource RAII indicates we still should allow our users access to the RAW Resource and it is applicable.
std::string	getName () const
	Gets the widget's name.
CameraWidgetTypeWrapper	getType () const
	Gets the widget's type.
std::string	getLabel () const
	Gets the widget's label.
std::string	getInfo () const
	Gets the widget's info.
int	getId () const
	Gets the widget's unique id.
CameraWidgetWrapper	getRoot () const
	Gets the widget's Root. This is likely going to be the Window Widget (same widget from ICameraWrapper::getConfig()).
CameraWidgetWrapper	getParent () const
	Gets the widget's parent. This is the immediate parent of the widget. If the current widget is a leaf node, then this is likely a Section Widget, but could also be a Window Widget.

Protected Member Functions
	NonValueWidget (gphoto2::_CameraWidget *cameraWidget)
gphoto2::_CameraWidget *	getChildByNameWrapper (std::string const &name) const
	Gets the child widget by the name passed in and returns the widget type that the user expects.
gphoto2::_CameraWidget *	getChildByLabelWrapper (std::string const &label) const
	Gets the child widget by the label passed in and returns the widget type that the user expects.
gphoto2::_CameraWidget *	getChildWrapper (int index) const
	Gets the child widget at the specified index and returns the widget type that the user expects.
gphoto2::_CameraWidget *	getChildByIdWrapper (int id) const
	Gets the child widget that matches the unique id.
Protected Member Functions inherited from gphoto2pp::CameraWidgetWrapper
	CameraWidgetWrapper (gphoto2::_CameraWidget *cameraWidget)
void	ref ()
	Adds a reference count to the internal gphoto2::CameraWidget struct.
void	unref ()
	Subtracts a reference count to the internal gphoto2::CameraWidget struct.
gphoto2::_CameraWidget *	getRootDefault () const
	Gets the unwrapped CameraWidget struct pointer of the root.
gphoto2::_CameraWidget *	getParentDefault () const
	Gets the unwrapped CameraWidget struct pointer of the parent.

Additional Inherited Members
Protected Attributes inherited from gphoto2pp::CameraWidgetWrapper
gphoto2::_CameraWidget *	m_cameraWidget = nullptr

Detailed Description

A class representing gphoto2 widgets which are not leaf nodes (have children), which is a Window or Section widget

Constructor & Destructor Documentation

gphoto2pp::NonValueWidget::NonValueWidget ( gphoto2::_CameraWidget * cameraWidget )

protected

Member Function Documentation

int gphoto2pp::NonValueWidget::countChildren ( ) const

Gets the number of children to this current widget.

Returns: the number of children

Note: Direct wrapper for gp_widget_count_children(...)

Exceptions

GPhoto2pp::exceptions::gphoto2_exception

template<typename T >

T gphoto2pp::NonValueWidget::getChild ( int index ) const

inline

Gets the child widget at the specified index.

Template Parameters

a	type that inherits from CameraWidgetWrapper

Parameters

[in] index of the child widget to get

Returns: the widget

Exceptions

GPhoto2pp::exceptions::gphoto2_exception

template<typename T >

T gphoto2pp::NonValueWidget::getChildById ( int id ) const

inline

Gets the child widget that matches the unique id.

Template Parameters

a	type that inherits from CameraWidgetWrapper

Parameters

[in] id of the child widget to get

Returns: the widget

Exceptions

GPhoto2pp::exceptions::gphoto2_exception

gphoto2::_CameraWidget* gphoto2pp::NonValueWidget::getChildByIdWrapper ( int id ) const

protected

Gets the child widget that matches the unique id.

Template Parameters

a	type that inherits from CameraWidgetWrapper

Parameters

[in] id of the child widget to get

Returns: the widget

Note: Direct wrapper for gp_widget_get_child_by_id(...)

Exceptions

GPhoto2pp::exceptions::gphoto2_exception

template<typename T >

T gphoto2pp::NonValueWidget::getChildByLabel ( std::string const & label ) const

inline

Gets the child widget that matches the label.

Template Parameters

T	type that inherits from CameraWidgetWrapper

Parameters

[in] label of the child widget to get

Returns: the widget

Exceptions

GPhoto2pp::exceptions::gphoto2_exception

gphoto2::_CameraWidget* gphoto2pp::NonValueWidget::getChildByLabelWrapper ( std::string const & label ) const

protected

Gets the child widget by the label passed in and returns the widget type that the user expects.

Template Parameters

a	type that inherits from CameraWidgetWrapper

Parameters

[in] label of the child widget to get

Returns: the widget

Note: Direct wrapper for gp_widget_get_child_by_label(...)

Exceptions

GPhoto2pp::exceptions::gphoto2_exception

template<typename T >

T gphoto2pp::NonValueWidget::getChildByName ( std::string const & name ) const

inline

Gets the child widget that matches the name.

Template Parameters

T	type that inherits from CameraWidgetWrapper

Parameters

[in] name of the child widget to get

Returns: the widget

Exceptions

GPhoto2pp::exceptions::gphoto2_exception

gphoto2::_CameraWidget* gphoto2pp::NonValueWidget::getChildByNameWrapper ( std::string const & name ) const

protected

Gets the child widget by the name passed in and returns the widget type that the user expects.

Template Parameters

a	type that inherits from CameraWidgetWrapper

Parameters

[in] name of the child widget to get

Returns: the widget

Note: Direct wrapper for gp_widget_get_child_by_name(...)

Exceptions

GPhoto2pp::exceptions::gphoto2_exception

gphoto2::_CameraWidget* gphoto2pp::NonValueWidget::getChildWrapper ( int index ) const

protected

Gets the child widget at the specified index and returns the widget type that the user expects.

Template Parameters

a	type that inherits from CameraWidgetWrapper

Parameters

[in] index of the child widget to get

Returns: the widget

Note: Direct wrapper for gp_widget_get_child(...)

Exceptions

GPhoto2pp::exceptions::IndexOutOfRange
GPhoto2pp::exceptions::gphoto2_exception

The documentation for this class was generated from the following files:

include/non_value_widget.hpp
src/non_value_widget.cpp
